Tugas Pendahuluan Modul 1

[KEMBALI KE MENU SEBELUMNYA]

DAFTAR ISI

1. Kondisi

2. Rangkaian Simulasi

3. Flowchart

4. Listing Program

5. Video

6. Link Download



1. Kondisi [kembali]

Percobaan 2 Kondisi 1

® Tampilkan angka 7 delay 1 detik lalu angka 8

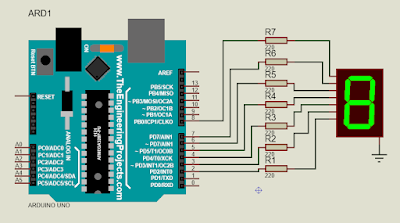

2. Rangkaian Simulasi [kembali]

3. Flowchart [kembali]



4. Listing Program [kembali]

byte sev_seg[] =  {2,3,4,5,6,7,8,9};



  void display_seven()

  {

    digitalWrite(2,LOW);

    digitalWrite(3,LOW);

    digitalWrite(4,LOW);

    digitalWrite(5,LOW);

    digitalWrite(6,HIGH);

    digitalWrite(7,HIGH);

    digitalWrite(8,HIGH);

  }



   void display_eight()

  {

    digitalWrite(2,HIGH);

    digitalWrite(3,HIGH);

    digitalWrite(4,HIGH);

    digitalWrite(5,HIGH);

    digitalWrite(6,HIGH);

    digitalWrite(7,HIGH);

    digitalWrite(8,HIGH);

  }



  void setup()

  {

    for(int a = 0; a < 9; a++)

    {

    pinMode(sev_seg[a], OUTPUT);

    }

  }



  void loop()

  {

    display_seven();

    delay(1000);

    display_eight();

    delay(1000);

  }



5. Video [kembali]





6. Link Download [kembali]

• HTML >> klik disini
• Rangkaian Proteus >> klik disini
• Program Arduino >> klik disini
• Video Simulasi >> klik disini
